What Is a Portable Water Cart?
A portable water cart is a specialised water-carrying system designed to transport and distribute large volumes of water across worksites, roads, and remote locations.
Structurally, these systems consist of a tank permanently mounted to a skid frame, allowing the entire unit to be slid onto a tray or tipper truck for quick installation. Alternatively, the water tank system can be configured as a trailer-mounted unit attached to the rear of a vehicle. Because these units carry thousands of litres of water; creating significant lateral forces during transport, the skid frame and chassis are engineered to distribute the load evenly and protect both the tank and the vehicle from structural stress or damage.
A portable water cart typically ranges from 2,000 litres up to 10,000 litres or more, depending on the application.

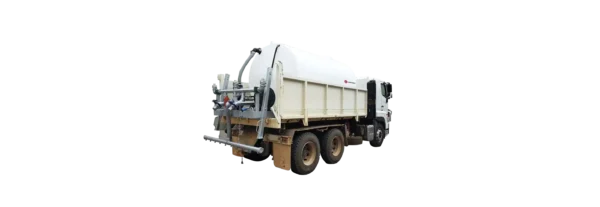

Civil Portable Water Carts: Tray & Tipper Truck Conversions
One of the most cost-effective and practical solutions is converting an existing tray or tipper truck into a water cart using a sliding portable water cart unit.
Instead of purchasing a dedicated water truck; which can cost $150,000 to $400,000+ new operators can fit a portable water cart unit to a truck they already own. The truck retains its normal function when the unit is removed.
This approach suits:
- Dust suppression on construction sites and dirt access roads
- Tree and yard irrigation during establishment
- Stock watering at remote locations
- Turf and public area maintenance
- Bio-security wash-downs between properties or sites
Liquimech, an Australian design and construct manufacturer, engineers its units to suit local operating conditions and regulatory requirements. Each system is built to maintain zero leakage during transport and comply with relevant Australian Standards for tank integrity and vehicle load ratings.
Key Benefits of a Portable Water Cart
- Durability
Portable water carts operate in some of the harshest environments in the world. Australian mine sites and civil projects require equipment capable of withstanding corrugated haul roads, extreme heat, prolonged UV exposure, and abrasive dust. Quality units typically feature high-grade polyethylene tanks mounted on engineered skid frames, built to endure these demanding operating conditions.
- Versatility
A single portable water cart with pumps, hoses, and spray nozzles can handle:

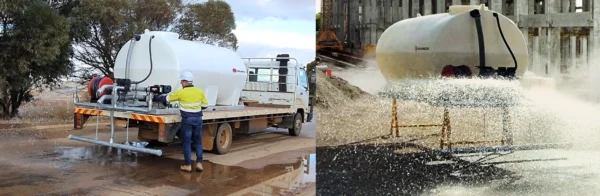

- Dust suppression on gravel roads and haul routes
- Soil compaction watering for road base preparation
- Potable water delivery to remote camps
- Irrigation for rehabilitation plantings and turf areas
- Fire suppression and emergency response support
- Wash-down services for machinery and biosecurity protocols
- Efficiency
Carrying 5,000 to 10,000 litres per trip means fewer fill-up runs, less downtime, and lower fuel costs. On large sites where the water source may be 2–5 kilometres from the work area, tank capacity directly impacts productivity.
- Compliance
In Australia, dust suppression is not just a best practice — it is often a legal requirement under workplace health, safety, and environmental regulations. Using a portable water cart enables site managers to actively demonstrate compliance with these obligations, reduce airborne dust risks, and maintain safer working conditions for employees. Proper portable water cart usage also supports environmental protection standards, minimises regulatory penalties, and helps document that sites are following best-practice operational protocols.
Configuration Options That Matter
Selecting the right portable water cart means more than just picking a tank size. Here are the configuration decisions that affect performance on-site:
Tank Capacity
Common sizes range from 2,000 L to 10,000 L. Larger tanks reduce refill frequency but increase axle load; always confirm your truck’s GVM (Gross Vehicle Mass) rating and axle limits before specifying tank size.

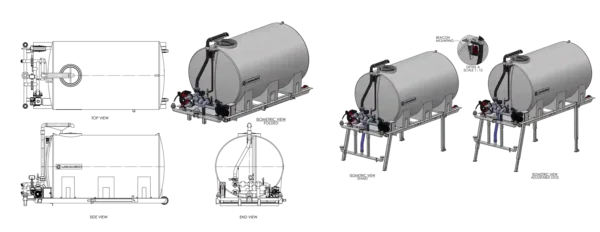

Frame Construction
Our skid frames are engineered to carry a full water load safely in motion. Built to Australian Standards with purpose-designed reinforcement, they ensure the tank remains secure, the vehicle chassis is protected, and your operations run safely and efficiently.
Pump Options
Petrol: Reliable, easy to maintain, ideal for sites without standardised diesel supply.
Diesel: Efficient for high-use operations, compatible with common site diesel supplies and typically lower running costs.
Other features include spray systems, fill and control systems, actuators for remote spray bar operation, and safety features such as baffle balls to reduce water surge and improve vehicle stability, and certified check valves to prevent backflow contamination.
Choosing the Right Portable Water Cart for Your Site
Always confirm:
- Your truck’s GVM and axle ratings
- Site access and fill point locations
- State-specific vehicle and load requirements
- Operator training requirements for pump and spray systems
Vegetation Management & Spray Systems
Portable water cart chassis can support spray vehicle service bodies for councils, road authorities, and land managers. Purpose-built for ute or truck platforms, these systems are ideal for roadside weed spraying, public reserve vegetation management, fire trail maintenance, and biosecurity protocols. Designed for operator safety and efficiency, they reduce risks from chemical exposure, traffic, and rough terrain through purpose-built storage, easy PPE access, and spray control systems that minimise manual handling.

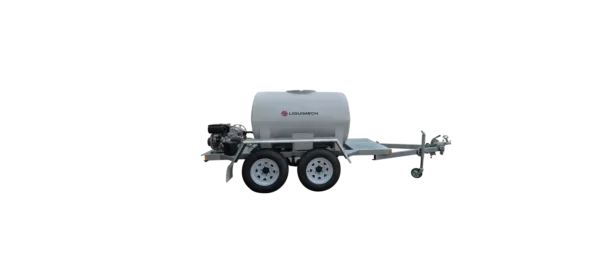

Emergency & Modular Fleet Solutions
Fleet managers in mining, civil, and emergency services increasingly specify modular and portable water cart systems that can transition between roles; from dust suppression on a haul road one week, to fire response support the next.
Modular designs allow rapid reconfiguration without dedicated vehicles for each task, which reduces capital expenditure and simplifies fleet management across large, distributed operations.
Key evaluation criteria for fleet managers:
- Adaptability: Can the unit be repurposed without a major rebuild?
- Compliance: Does it meet current ADR or Australian Design Rules and worksite safety requirements?
- Operator safety features: Does it reduce manual handling, unplanned dismounts, and chemical exposure?
- Serviceability: Are parts and service available across Australian states?
Who Uses Portable Water Carts in Australia?
The demand for portable water carts is concentrated in four main sectors:
- Civil construction: Road building, subdivisions, and infrastructure projects require constant dust suppression and soil compaction support. In Australia, regulations in every state require effective dust control on worksites, particularly for silica dust compliance under the model WHS Regulations.
- Mining and quarrying: Mine haul roads generate significant respirable dust. Operators use potable water carts to wet down access roads, suppress dust near crushing operations, and maintain compliance with EPA site conditions.
- Agriculture and rural: Portable water carts supply remote stock watering points, irrigate newly planted trees, and support property fire preparation, particularly relevant across rural NSW, Victoria, and WA where reticulated water is unavailable.
- Emergency and municipal services: Councils use water carts for turf maintenance, road shoulder watering, and biosecurity wash-downs. Emergency services deploy them during hazard reduction burns and post-fire recovery.
Find the right portable water cart solutions for your project.
A portable water cart is one of the most productive pieces of equipment on Australian civil and mining sites. The correct specification—including tank size, pump type, spray system, and safety features—directly impacts site compliance, crew safety, and overall operational efficiency.
Whether you’re converting an existing tray truck for a construction project or specifying a full fleet solution for a Tier 1 mining operation, the fundamentals remain the same: build quality, proper configuration, and strict compliance with Australian standards.
Liquimech manufactures and supplies a comprehensive range of industrial portable water carts and equipment across Australia. This includes sliding water cart units, mining-spec water carts, spray vegetation management systems, and modular emergency vehicle solutions. All units are built tough to meet rigorous Australian standards and deliver reliable performance in demanding site conditions.
