Pump Solutions

Large bulk water storage tank for industrial and agricultural applications

Bulk Water Storage Tanks

Ranging from 10,000 to 56,000 litres, is skid-mounted for quick deployment with container lifters, fork pockets, and lifting lugs for...

Industrial water flow meter Australia installed for accurate monitoring and efficient water management in municipal, mining, and construction sites.

Water Flow Meters

Liquimech's flow sensors and flow monitors track liquid flow and rates, including slurries. Integrated with our telemetry control systems and...

HDPE Foot Valves

Constructed from highly durable materials, Liquimech HDPE foot valves enhance the efficiency and longevity of pumps. They protect the pumps...

Custom Machine Safety Guarding

Designed to meet all Australian standards, Liquimech guarding solutions ensure your personnel and assets are protected from harm or injury...

Polyethylene pipe, cable & hose floats for long-term water-based use

Polyethylene Pipe Floats

Manufactured from quality polyethylene, designed to let pipes bend and flex while staying resistant to water currents and strong winds.

Standpipe Pump Packages

Designed for safe and rapid filling of water trucks. Their modular design enables strategic installation to ensure easy access and...

Liquimech pump control system with on and off functionality

Remote Pump Controller

A user-friendly Local Access Pump solution that streamlines operations, reduces costs and enhances security.

Polyethylene Pontoons

Get reliable floating pump support with Liquimech Polyethylene Pontoons. Lightweight, UV-stabilised, and built tough for any Australian environment.

Customisable heavy-duty pontoons designed to withstand harsh environments, providing secure and stable flotation for heavy equipment.

Heavy Duty Floating Pontoons

Discover heavy-duty pontoons engineered for safety and stability in Australia. Customisable solutions designed to support any load and suit diverse...

Donut Pontoons

Liquimech Donut Pontoons: Your safe, stable flotation solution for submersible pumps in mining, construction, and dewatering. Built tough for Australia.

Industrial blue butterfly valve with actuator for automated fluid management in mining, construction, and water systems

Valves and Actuators

Our valves and actuators are engineered for reliable automation and fluid control in demanding conditions, ideal for mining, chemical, and...

Heavy-duty hydraulic hose with banded clamps designed for chemical and slurry applications

Hose Assemblies

Liquimech supplies suction, rubber, layflat, and specialty hose assemblies built for tough site conditions. Pre-assembled with quick-connect fittings, our kits...

Trailer-mounted pump system by Liquimech for mining and industrial water transfer

Pump Skid & Pump Trailer Packages

Efficient, site-ready pump packages that minimise downtime and improve performance in mining, industrial, and civil environments.

Liquimech diagram water pump intake collecting sand, mud, and sediment that can increase pump wear and maintenance

Floating Water Intake System

Designed to maintain suction line prime, protect pumps, and deliver reliable water transfer.

I highly recommend Liquimech and wouldn’t think to go anywhere else, appreciate all you have done.

Reliable Pumping Where Others Lose Prime

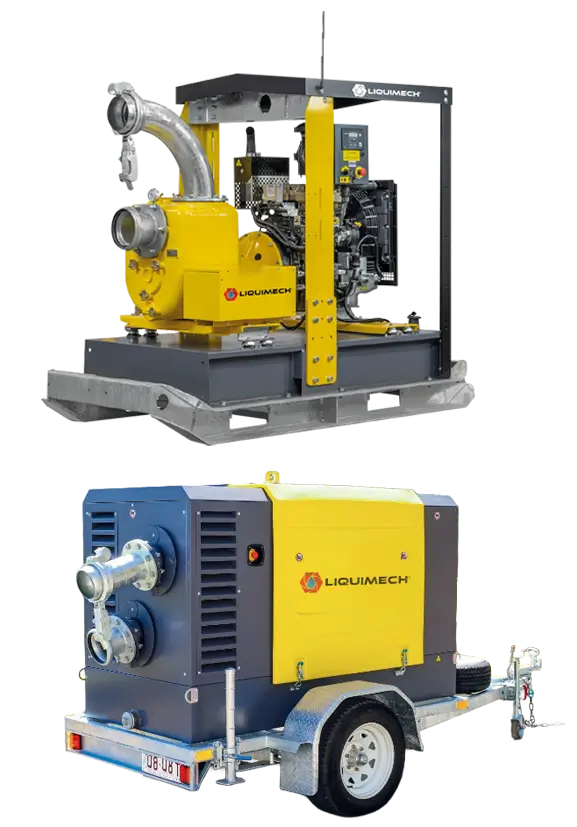

PAS Series Vacuum-Prime Centrifugal Pumps

The PAS Series vacuum-prime centrifugal pumps are engineered to keep operations flowing in challenging conditions, handling air in suction lines, fluctuating water levels, and solids-laden or abrasive liquids where conventional pumps fail. Widely used in construction dewatering, mining, municipal wastewater bypass, irrigation, industrial fluid transfer, and emergency flood response, they deliver consistent priming, reliable performance, and reduced downtime across diverse applications.

Designed as part of our heavy-duty pump system range, the PAS Series is built for demanding site conditions requiring dependable vacuum priming performance.

Pump set: Equipped with semi-open impellers, robust ductile iron components, service-friendly wear plates, and oil-bath mechanical seals, the PAS range minimises clogging and simplifies maintenance, providing long-term operational reliability.

Why Choose the PAS Series?

Start Fast, Stay Primed
Vacuum-assisted priming ensures reliable operation even with air in suction lines or fluctuating water levels.

Handles Solids and Abrasive Liquids
Reduces blockage risk and keeps fluid transfer uninterrupted.

Durable and Low-Maintenance
Replaceable wear parts and accessible design minimise downtime.

Adaptable to Any Site
Available in skid, canopy, trailer-mounted, and mine-spec pump set configurations.

Product Code	Qmax	Hmax	Solids handling	Impeller type	Impeller Material	Engine Model (Power)	Arrangement	Control Panel
PMP-AC-PAS80MF-CAN	45 L/S (2,670 L/min)	19 m	40 mm (1 1/2″)	Semi-Open, 3 vane	EN-GJS-500 ductile iron	Hatz 2G40H (8.6 kW)	Canopy (Customisable)	PW 250
PMP-PAS-100MF/250-FKL39-CNP&SKID	78 l/s (280 m³/h)	36 m	50 mm (2.0 “)	Semi-Open, 2 vane	EN-GJS-400 ductile iron	Kohler KDI 1903M ( KL39)	Canopy + Skid (Customisable)	PW 250
PMP-AC-PAS150MF/ 250-OS	111 L/s	37 m	76 mm (3.0 “)	Semi-Open, 2 vane	EN-GJS-400 ductile iron	KDI 1903M (KL10)	Skid (Customisable)	CP KDI 1903M-2504M/CP KDI 1903M-2504M
PAS 150MF 250 FKL38 CNP AOY & SKID	150 l/s – 540 m³/h	37 m	76 mm (3.0 “)	Semi-Open, 2 vane	EN-GJS-400 ductile iron	KDI 2504M (KL38)	Canopy + Skid (Customisable)	PW 250
PAS 150 HARDHAT	111 l/s – 400 m³/h	37 m	76 mm (3.0″)	Semi-Open, 2 vane	EN-GJS-500 ductile iron	D 2.9 L4	Hardened Polyethylene Canopy + Trailer mounted (Customisable)	PWK37 KENSHO

Engineered for Demanding Fluid Handling Applications

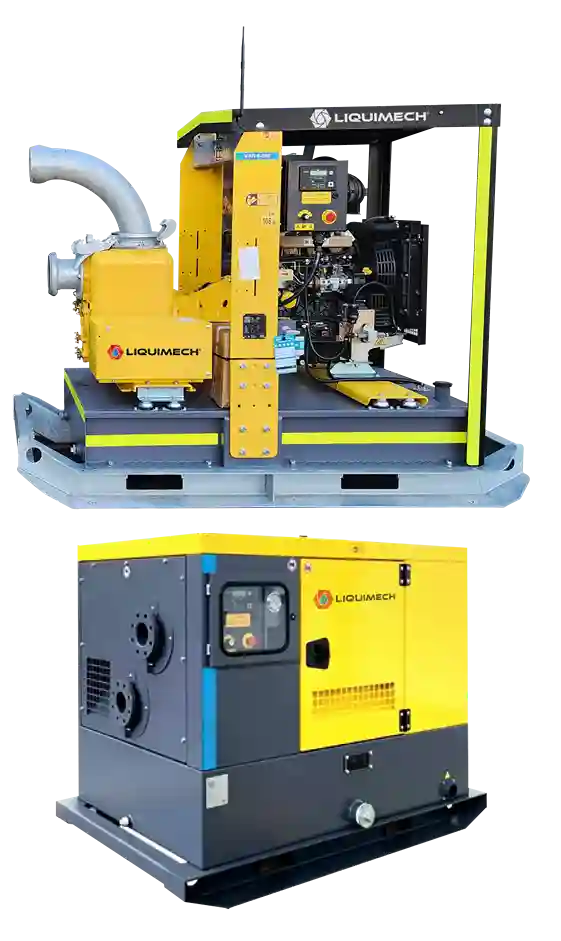

VAR Series Self-Priming Centrifugal Pumps

The VAR Series self-priming centrifugal pumps are engineered to perform where ordinary pumps struggle. Widely used in construction, civil, mining, irrigation, wastewater bypass, industrial processes, and emergency dewatering, they deliver fast, reliable pumping of dirty, abrasive, and solids-laden liquids.

These systems form part of our engineered pump solutions for applications requiring consistent self-priming performance.

Pump set: Designed with a semi-open impeller and replaceable wear plates, the VAR range handles sand, sludge, and turbid water while minimising clogging and unplanned downtime. With robust cast iron construction, high-quality mechanical seals, and maintenance-friendly access, these pump sets provide dependable performance, extended service life, and lower operating costs in demanding environments.

Why Choose the VAR Series?

Fast, Reliable Start-Up
Self-primes quickly, even at higher suction lifts, reducing delays and keeping operations moving.

Handles Tough Liquids
Engineered for water containing solids and abrasive materials, ensuring consistent flow and reduced blockages.

Built for Long Service Life
Replaceable wear components and durable materials help minimise downtime and maintenance costs.

Designed for Real Work Sites
Ideal for construction, mining, dewatering, irrigation, wastewater bypass, and industrial water transfer applications.

Product Code	Qmax	Hmax	Solids handling	Impeller type	Impeller Material	Engine Model (Power)	Arrangement	Control Panel
PMP-VAR-4/250-FKL17-SKID02	180 m³/h – 3.000 l/min (800 USgpm)	40 m	50 mm (2.0 “)	Semi-Open, 2 vane	EN-GJS-400 ductile iron	KDI 1903M (KL17)	Skid (Customisable)	PW100
PMP-VAR 6-250	340 m³/h -5.670 I/min (1,500 USgpm)	33 m	76mm (3.0″)	Semi-Open, 2 vane	EN-GJS-400 ductile iron	KDI 1903M (KL10)	Skid (Customisable)	PW 250

High-Volume Liquid Transfer for Demanding Environments

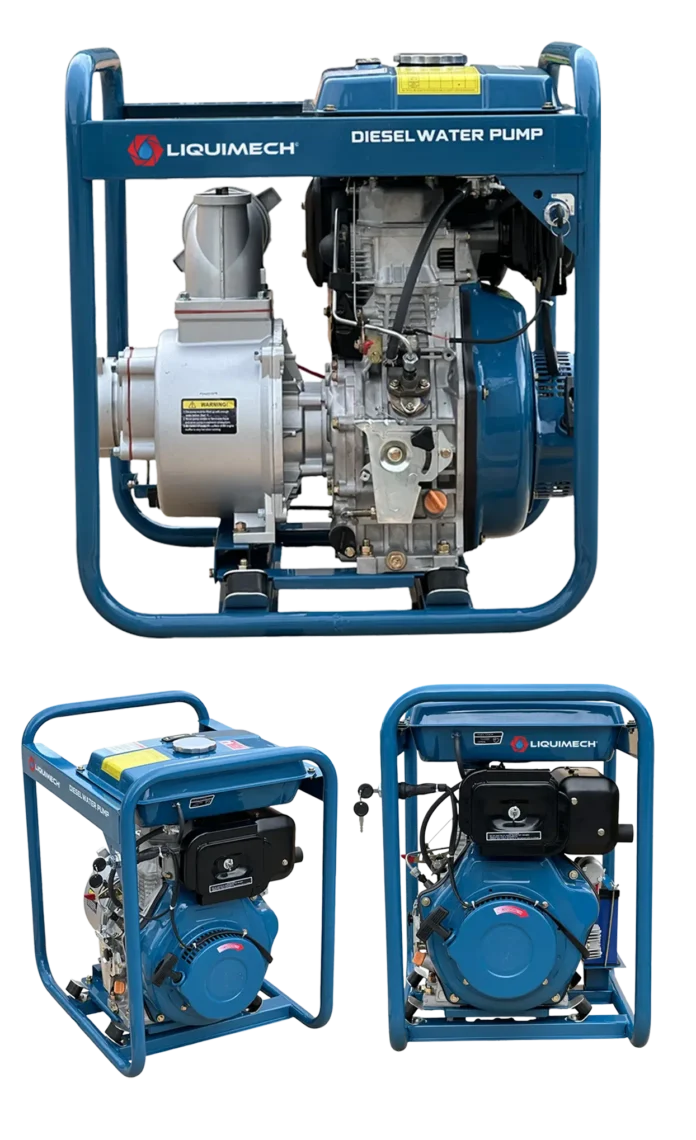

Self-Priming Diesel Transfer Pumps

Our self-priming diesel transfer pumps are engineered to deliver reliable, high-volume transfer of water or diesel in remote and demanding conditions where power access is limited and downtime is costly.

As part of our comprehensive pump solutions in Australia, these diesel-driven systems are commonly deployed for mine-site refuelling, construction dewatering, bulk water transfer, agricultural irrigation, and emergency flood response. These pump systems provide consistent performance in environments where debris, lift requirements, and continuous operation challenge conventional pumps.

Built with durable cast alloy components, dependable air-cooled diesel engines, and practical service access, these pump sets are designed for operational reliability and long service life.

Why Choose the Diesel Transfer Pumps?

High-Volume, Efficient Transfer
Designed for fast movement of water and diesel across industrial, mining, and agricultural applications.

Built for Harsh Conditions
Self-priming capability and robust construction reduce operational interruptions in remote or debris-prone sites.

Reduced Downtime
Electric start, large fuel tanks, and service-friendly design support extended run times and easier maintenance.

Product Code	Qmax	Hmax	Solids handling	Impeller type	Impeller Material	Engine Model (Power)	Arrangement	Control Panel
PMP-4INCH-11HP-DSL	1,330 L/min	25 m	27 mm	Single Impeller	Cast alloy/cast iron	Air-cooled, 4-stroke diesel	Roll Frame	Electric start with emergency stop
PMP-6INCH-11HP-DSL	3,333 L/min	15 m	27 mm*	Single Impeller	Cast alloy/cast iron	11HP Diesel	Roll Frame	Electric start with emergency stop

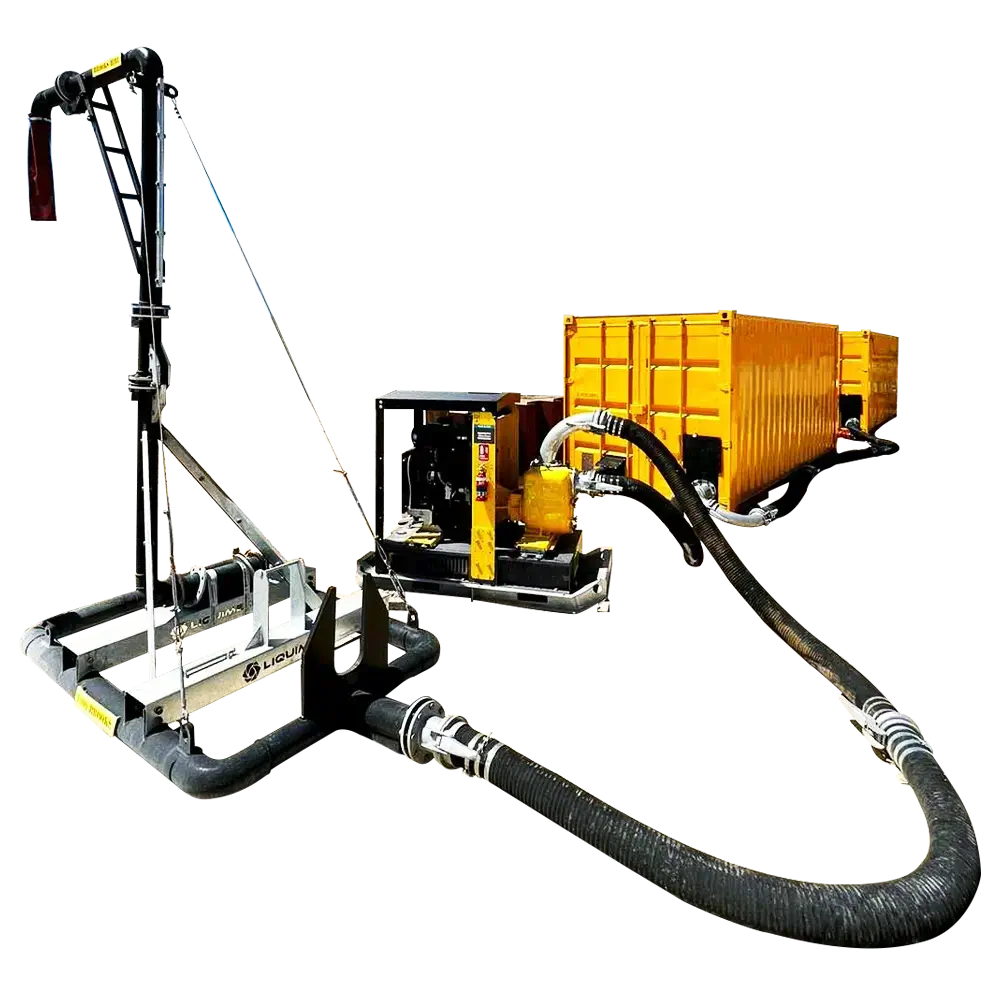

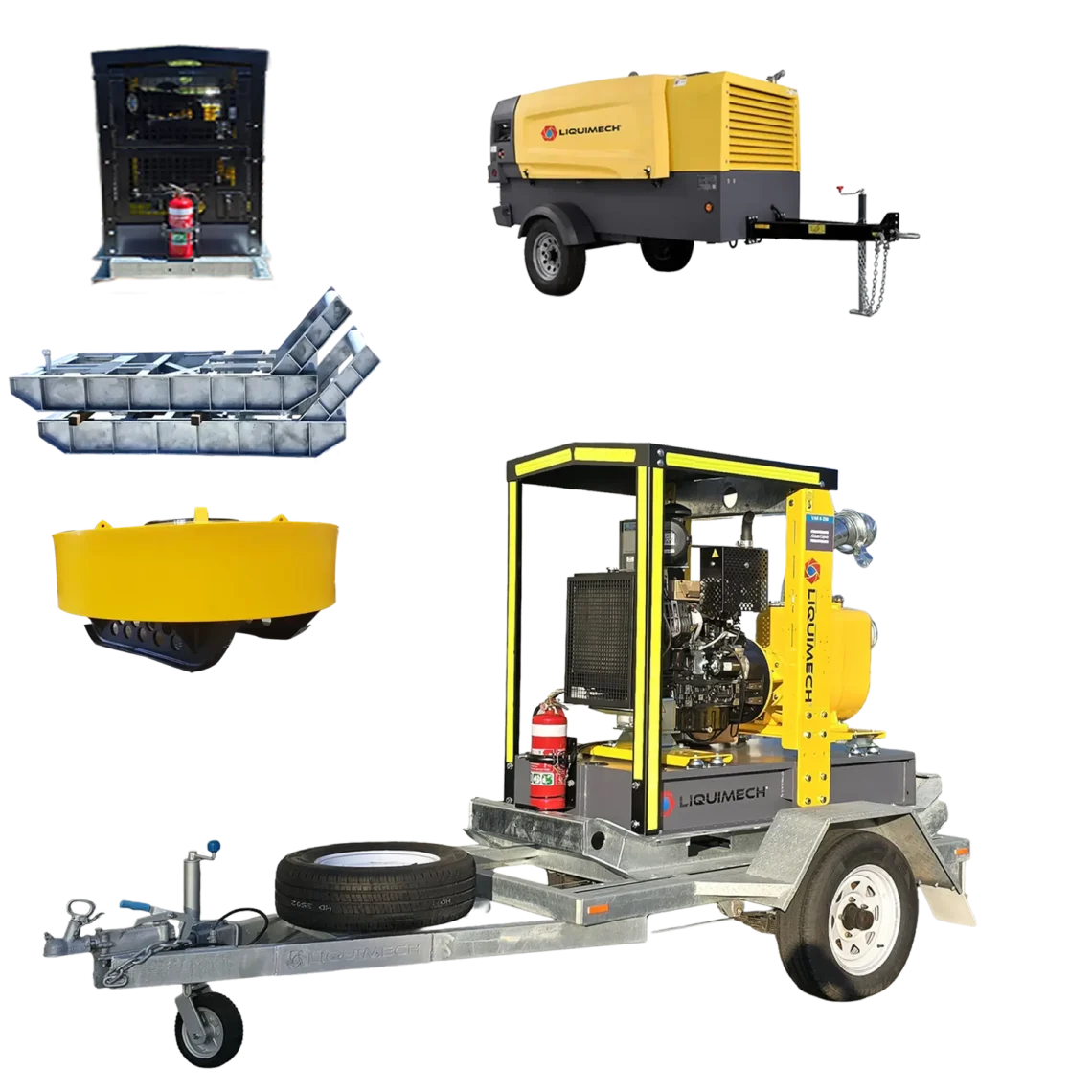

Site-Ready Pump Packages

Our pumps can be supplied as fully integrated, site-ready pump systems. They can be mounted on heavy-duty skids, protective cages, or road-registered trailers for safe transport and operational stability. Optional canopies or enclosures provide weather protection and reduced noise output where required. These pump packages are a core part of our pump solutions, delivering complete, compliant deployment systems rather than standalone pumps.

Mine-spec safety and compliance upgrades are available, including flashing lights, reflective tape, anti-tamper protection, fire extinguishers, and blast covers. Floatation systems can also be configured for dam, pond, or tailings applications, allowing stable operation under fluctuating water levels.

Faster mobilisation with reduced site setup requirements.
Improved safety compliance in regulated environments.
Enhanced equipment protection and service life.

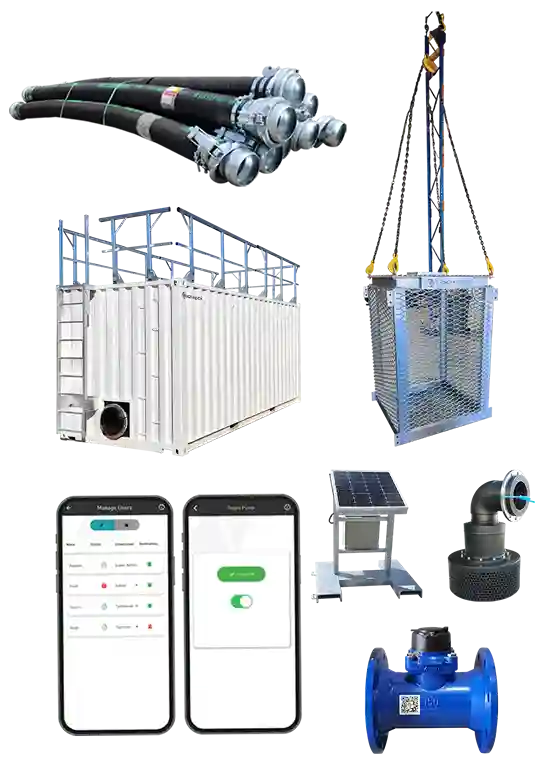

Complete Pumping Line & Control Systems

We supply complete suction, discharge, storage, and control systems to deliver a fully operational pumping solution beyond the pump unit itself. Our pump solutions combine pump units, water storage containers, water truck overhead filling pipework, and engineered pipe systems into one coordinated pump set for seamless operation. Configurations include engineered suction assemblies with strainers and filtration, matched discharge and delivery hose systems, modular water storage containers for controlled transfer and temporary holding, and telemetry-enabled automatic control systems.

Telemetry-enabled automatic pump control allows start/stop automation based on level or pressure inputs, with optional remote monitoring to reduce manual oversight and prevent dry running or overflow risks.

Integrated system reliability and performance.
Reduced installation complexity and operational risk.
Remote visibility and automated control capability.

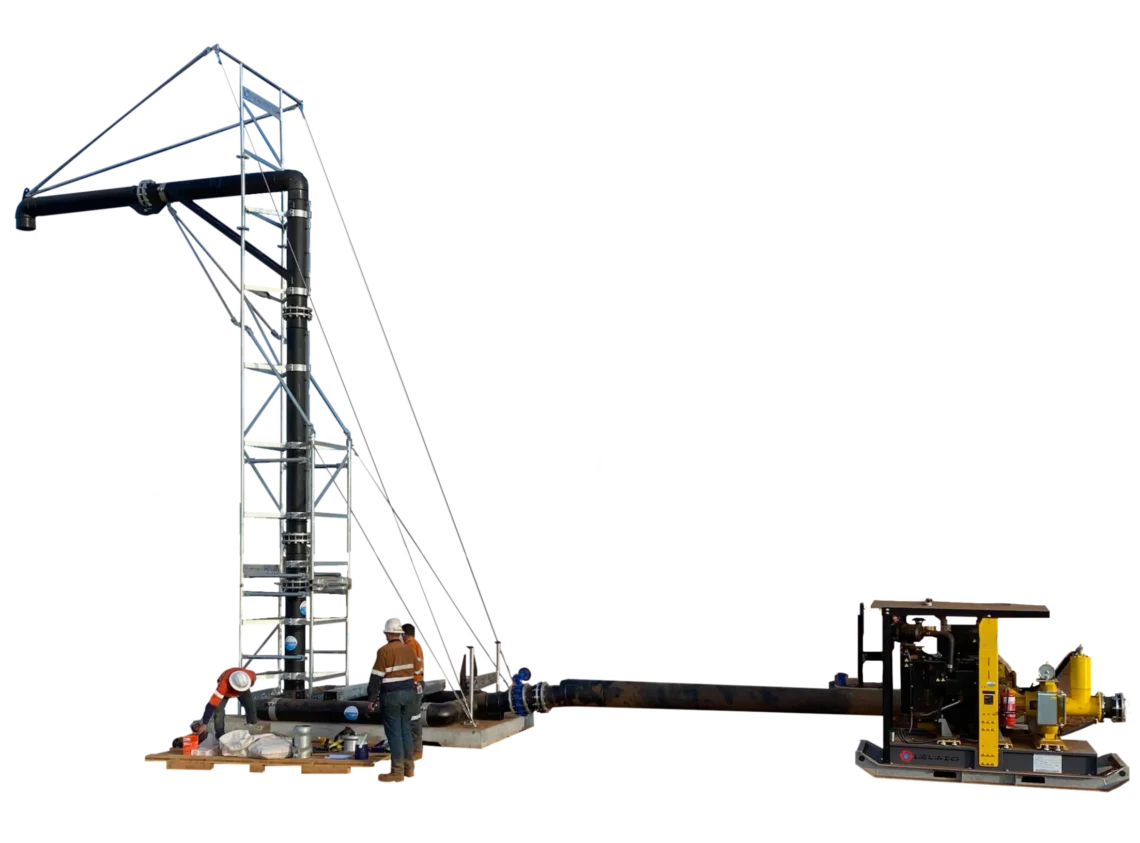

Pump System Auditing & Commissioning

Once a pump system is engineered and installed, essential on-site checks ensure it performs as required under actual operational conditions. As a trusted provider of Pump Solutions in Australia, Liquimech delivers professional auditing, commissioning, and performance evaluation for every pump set and integrated pump system. Our Pre-Commissioning Checklist verifies installation, alignment, hydraulic configuration, and control functionality, while detailed reports include recommendations for repair, optimisation, upgrade, or complete pump system replacement.

Conduct on-site checks to confirm pump system performance meets operational demand.
Verify installation, hydraulics, and control functionality of each pump set.
Provide clear recommendations for repair, optimisation, or full pump system replacement.

Why Choose Liquimech Pump Systems

Liquimech has been a trusted provider of pumps and Pump Solutions in Australia, delivering complete engineered systems rather than standalone products. We offer a wide range of pumps, complete pumping systems, and additional components, ensuring our valued customers have access to the very best on the market.

From a single pump set to fully integrated pump solutions for mining, civil, municipal, and industrial applications, we deliver performance, reliability, and long-term value.

Pump specialists with real-world site experience.
Proven solutions for mining, civil, industrial, and emergency applications.
Custom-built packages focused on reliability, safety, and total lifecycle cost.
Local support and expert advice.

Talk To Our Experts Today

Every application demands the right Pump System configuration.

Our team will help you select, configure, and deliver the correct Pump set or fully integrated Pump System to match your flow rate, head, solids content, duty cycle, and site conditions. Partner with Liquimech for reliable Pump Solutions in Australia designed for performance, compliance, and long-term operational efficiency.
