Robust and portable sediment tanks are built for on-site resilience, seamlessly adapting to harsh environments for instant deployment.
Up to 20x More Efficient: Liquimech Lamella Clarifiers, The Clear Choice for Water Treatment
The Liquimech Lamella Clarifiers are designed to remove a wide range of contaminants from wastewater and other liquids, including:
- Grit
- Metals
- Suspended solids
- Settleable matter (silt)
- Solids-laden surface runoff
- Groundwater contaminants
- Floating materials (organics and oils)
- Other solids with a specific gravity greater than 1.0
How does a Lamella Clarifier work?
Lamella Clarifier is an advanced sedimentation tank that utilises:
- Inclined Plates: To separate solid particles from liquid. These plates are arranged to increase the unit’s effective settling area.
- Conical Sludge Hopper: To allow accumulation of settled solids.

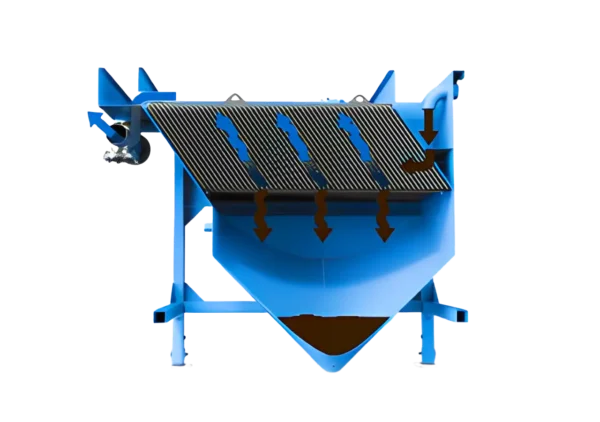

Lamella Plate Clarifier works on the principle of gravity separation. Our clarifiers can handle feed water in a variety of conditions with a high concentration of suspended solids. Separation outcomes will vary depending on the quality of the feed water and the pollutants present.
- The feed water enters the lamella clarifier from the top inlet channel and flows to the separator’s bottom.
- The water is led back to the top, passing through the lamellas along the way, where the solid particles settle.
- Treated water rises to the top and passes through a weir to reach the outlet.
- The sludge is collected in the sludge funnel as it slides down the lamellas.
To prevent sludge caking in the conical hopper, a rabble rake can be fitted. At regular periods, the sludge is exported.
Lamella Clarifiers are considered one of the best pre-treatment solutions ahead of more complex treatment technologies.
If you have a specific requirement, we offer custom water clarification systems.
Liquimech Lamella Plate Clarifiers are pre-assembled. Multiple units can be utilised in tandem to enhance the surface area available for solid particle settlement, speeding up the gravity separation process and flow rate.
The Silt Separators have no moving parts, require no maintenance, and are extremely durable, meeting ISO standards.
Liquimech Lamella Separators can also be supplied as part of a complete, tailored, packaged treatment solution, including ancillary equipment such as dewatering systems, pipe flocculators, and dosing systems.
