This guide explores the components, applications, benefits, and key considerations associated with pump skids, offering valuable insights for professionals aiming to optimise their processes.
What is a Pump Skid System?
A pump skid integrates essential components into a system designed for efficient fluid handling. Typically, a pump skid includes the following:
- Pump: Often a centrifugal pump tailored to meet specific operational requirements.
- Driver: Either an electric motor or a diesel engine, depending on the application’s energy source and demands.
- Baseplate: A robust steel platform that provides stability and structural support.
- Supporting Components: Filters, gauges, control systems, valves, and piping to enhance functionality and performance.
This integration ensures that the components work seamlessly together, delivering consistent and reliable fluid management while minimising the risk of operational inefficiencies.
Key Components of Pump Skid Systems
Pump skid systems are engineered for durability and efficiency, with each component optimised for specific roles:
-
Pumps
Pump types vary depending on temperature and pressure requirements
- Air-Cooled Pumps: Suitable for fluids with temperatures up to 350°C (660°F).
- Water-Cooled Pumps: Designed for applications requiring temperatures between 350°C and 400°C (750°F).
Single-pump and multi-pump configurations are available to accommodate different operational scales.
-
Filters
Filters play a critical role in protecting the system by:
- Preventing debris from contaminating internal components.
- Ensuring smooth fluid flow by capturing unwanted particles.
-
Pressure Gauges
- Monitor inlet and outlet pressures.
- Help maintain the system within optimal parameters, reducing the risk of equipment failure.
-
Control Systems
- Mechanical or Electrical Panels: Equipped with motor starters, switches, and indicator lights.
- Weatherproof Designs: Suitable for outdoor installations, ensuring resilience in diverse environmental conditions.
- Remote Pump Controller: This pump controller enables the operator to switch the pump on and off remotely.
-
Piping and Valves
- Piping: This is what the fluid flows through when the centrifugal pump applies pressure., with optional insulation for temperature-sensitive applications.
- Valves: Regulate flow and pressure while providing emergency shut-off functions, enhancing safety and reliability.
-
Pump Support Bases
Typically made from stainless steel or mild steel, finished with blast and paint or hot-dip galvanisation. Ensuring perfect alignment of the pump and motor is important to avoid additional forces being applied to the pump or motor. Stainless steel and hot-dip galvanised pump skids often have machined pads for precise attachment, ensuring a long lifespan for the skid-mounted pump system.
Industrial Applications of Pump Skids
Pump skids are used across various industries due to their versatility and efficiency. In water and wastewater treatment, pump skid systems are essential for water purification and effluent management. Here are more industries that utilise pump skids:
- Mining
- Chemical Processing
- Petroleum and Petrochemical Industries
- Pulp and Paper Production
- Pharmaceuticals
- Food and Beverage
- Agriculture
Portable and Fixed Pump Skids
Pump skids can be tailored for mobility or fixed installations based on operational needs:

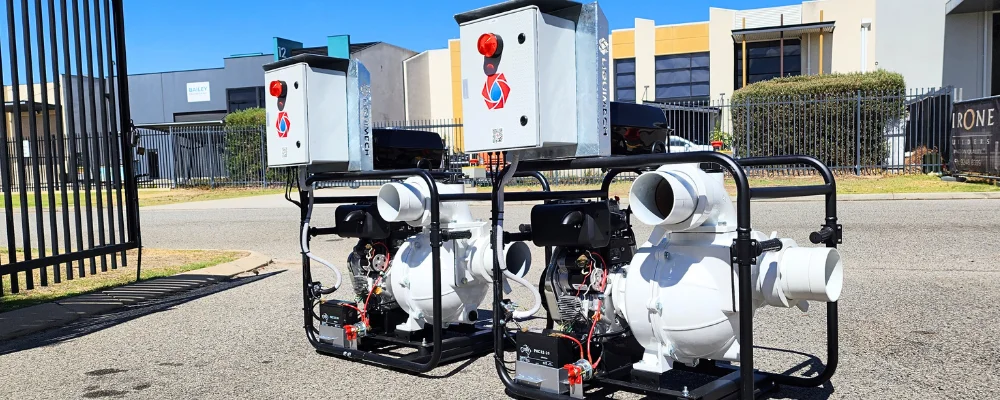

Portable Pump Skids:
- Easy to transport, ideal for temporary or mobile operations.
- Constructed from durable materials like stainless steel or mild steel for resilience in varied environments.
Fixed Pump Skids:
- Designed for permanent installation in specific locations.
- Engineered for continuous operation, providing stability and reliability for long-term use.
Benefits of Pump Skid Systems
Investing in a pump skid system offers several advantages:
- Cost-Effective: Pre-assembled units reduce the need for sourcing and assembling individual components.
- Easy Installation: Ready-to-use systems minimise setup time, enabling faster deployment.
- Customisation: Tailored designs accommodate unique requirements, including fluid characteristics and operational conditions.
- Reliability: Precision engineering ensures consistent performance and reduces downtime.
- Maintenance-Friendly: Systems are designed for easy access, simplifying routine servicing and prolonging lifespan.
Expert Considerations in Pump Skid Design
- Alignment: Precise alignment of pumps and motors prevents mechanical issues and extends system life.
- Efficiency: Energy-efficient designs reduce operational costs while maintaining high performance.
- Maintenance Access: Thoughtful layouts enable convenient servicing without extensive downtime.
- Environmental Resilience: Materials and construction methods are chosen to withstand specific environmental conditions, such as extreme temperatures or corrosive atmospheres.
Choosing the Right Pump Skid System
When selecting a pump skid system, consider the following factors:
- Fluid Properties: Understand the fluid’s viscosity, temperature, and chemical composition.
- Pressure and Temperature Needs: Ensure the system can handle the required parameters without compromising performance.
- Environmental Conditions: Account for external factors like weather, humidity, and site-specific challenges.
- Industry Standards: Adhere to regulatory and safety requirements specific to your industry.
- Application Requirements: Match the system’s capacity and features to the operational demands of your industry.
Pump skid systems are important in industrial fluid management, providing a reliable, efficient, and cost-effective solution. By integrating all necessary components into a single, pre-engineered package, they simplify installation, enhance performance, and reduce operational challenges. If you require the use of pump skids in your facility or workplace in Australia, get in touch with Liquimech today so we can offer customisable products and systems that will meet your exact needs and expectations. Check our locations and send us a message using our Contact Page today so we can discuss how we can help you find the ideal liquid management options.
